Products / PIONEER
AC/DC Feedthrough Components
Rated Current: 1A～250A
Application:
Increasing system and information security
Power supplies,Switching and cellular equipment
Computer servers,Medical equipment
Shielded room etc
Feedthrough Filter Specification:
| Rated voltage | 250VAC@50/60Hz |
| 80VDC～ 600VDC | |
| Rated current | 1A～250A |
| Temperature Range | HPF40/085/56 |
Filter Selection Table:
| Filter | RatedCurrent (A) | RatedVoltage (V) | LeakageCurrent (mA) | TestVoltage1min (VDC) |

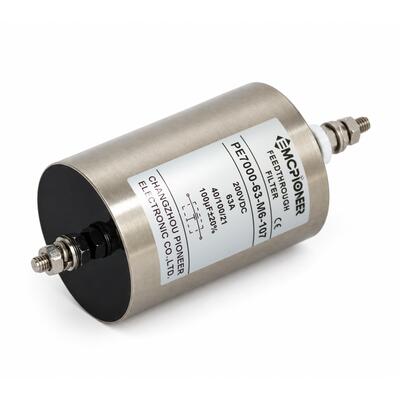

| PE7100-16-M4 | 16 | 250 | 4.14 | 2250 |
| PE7100-63-M6 | 63 | 250 | 88.5 | 2250 |
| PE7100-100-M8 | 100 | 250 | 564 | 2120 |
| PE7103-100-M8 | 100 | 250 | 564 | 2200 |
| PE7100-250-M12 | 250 | 250 | 157 | 2250 |
| PE7121-30-M5 | 30 | 600 | - | 2500 |
| PE7000-63-M6 | 63 | 200 | - | 400 |
| PE7022-50-M6 | 50 | 200 | - | 720 |
| PE7120-65-M6 | 65 | 200 | - | 1000 |
| PE7123-62-M6 | 62 | 250 | - | 2250 |
| PE7124-65-M6 | 65 | 250 | - | 2250 |
| PE7120-230-M10 | 230 | 400 | - | 2121 |
| PE7021-250-M10 | 250 | 200 | - | 1500 |
| PE7013-200-M10 | 200 | 250 | - | 2250 |
