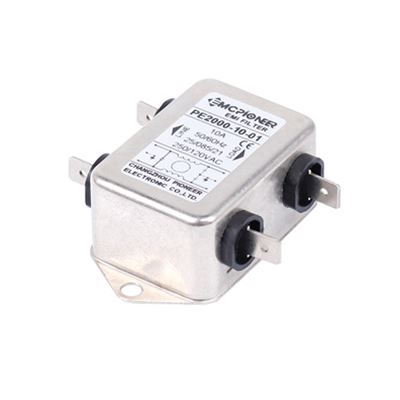

PE2000 Single Phase Single Stage Compact EMI Filter





Single Phase Single Stage Filter

Rated Current: 1~10A


Application:

Electrical and electronic equipment

Office automation equipment

LED Drive , Power supplies etc




PE2000白底


Single Phase Specification:

Rated voltage120/250VAC
Rated current1A~10A
Operating frequency50/60Hz
Temperature RangeHPF25/085/21
Test voltage(1min)Line to Line 1450VDC
Line to Ground  2000VAC


Electrical Schematic:

2000 E.jpg


Filter Selection Table

FilterRated Current(A)Rated Voltage(V)Leakage Current(mA)Input/Output ConnEctions
PE2000-1-011120/2500.5Faston
PE2000-3-013120/2500.5Faston
PE2000-6-016120/2500.5Faston
PE2000-10-0110120/2500.5Faston
PE2000-1-031120/2500.5Wire
PE2000-3-033120/2500.5Wire
PE2000-6-036120/2500.5Wire
PE2000-10-0310120/2500.5Wire
PE2001-1-011120/2500.5Faston
PE2001-3-013120/2500.5Faston
PE2001-6-016120/2500.5Faston
PE2001-10-0110120/2500.5Faston
PE2001-1-031120/2500.5Wire
PE2001-3-033120/2500.5Wire
PE2001-6-036120/2500.5Wire
PE2001-10-0310120/2500.5Wire
PE2002-1-011120/2500.5Faston
PE2002-3-013120/2500.5Faston
PE2002-6-016120/2500.5Faston
PE2002-10-0110120/2500.5Faston
