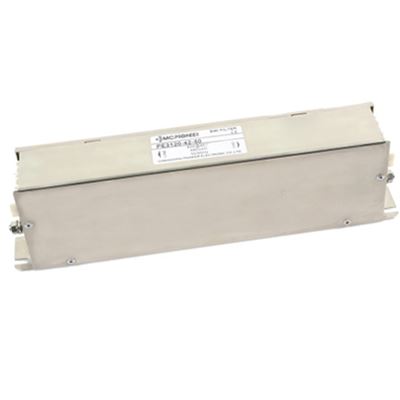

PE3120 275/480V Elevator Compact Filter
Place:Home > Products> Three Phase EMI Filters
PE3120 275/480V Elevator Compact Filter

Three Phase Filter

Rated Current: 7A~42A


Three phase variable speed motor drives,servo drives

Inverters and converters

HVAC equipment,elevator,power supply,UPS etc

Industrial applications comprising power conversion devices,

such as machinery,machine tools or process automation equipment

Three Phase Filter Specification:

Rated voltage275/480VAC
Rated current7A~42A
Operating frequencyDC to 60Hz
Temperature RangeHPF40/085/21
Test voltage(1min)Line to Line 1500VDC
Line to Ground 2250VDC

Electrical Schematic:

3120 E.jpg

Filter Selection Table:


Rated Current(A)

Rated Voltage(V)

Leakage Current(mA)

Input/Output Connections

PE3120-7-507275/48033Strip terminal block
PE3120-10-5010275/48033Strip terminal block
PE3120-16-5016275/48033Strip terminal block
PE3120-30-5030275/48033Strip terminal block
PE3120-42-5042275/48033Strip terminal block
